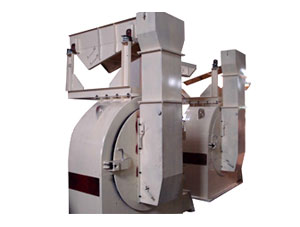

Double Stream Mill

Double Stream Mill

Description
Double stream mill is used for production of very fine flakes or excelsiors from wood flakes or wood shavings. It is made up of engine base, grinding screen ring, impeller, vibratory feeder, magnetic drum separator and gravity separator. Subclass products include BX566, BX568, BX5610 and BX5612.

Application
Double stream mill is suitable for wood industrial production field.

Features
Wood chip grinding machine features high cost performance, good quality and superior performance.

Payment, Packaging and Delivery
1. T/T or L/C is accepted terms of payment.
2. Sawdust making machines are packed in standard wooden cases.
3. Type of shipping is by sea or by air.

Note
Double stream mill should be chosen according to production capacity, needed particle size and production environment.

Parameters
BX Series Double Stream Mill
             Model Technical Data BX566 BX568 BX5610 BX5612
Diameter of Screen Ring (mm) 600 800 1000 1200
Width of Grinding Ring (mm) 150 175 180 210
Width of Screen Mesh (mm) 100×2 90×2 160×2 180×2
Revolution of the Impeller (rpm) 2950 2320 1850 1450
Main Motor Power (kW) 55 90 132 200
Productivity (kg/h) 300-800 500-1000 800-1600 1400-2600
Weight (kg) 1500 2050 2500 3500
Dimension (mm) 1775×1500×2150 2120×1867×2035 2585×2200×2315 2700×2520×2785

We own strict quality control system and perfect testing system in order to ensure the quality of our products. Wood chipper production technology and quality have reached the international level. The products like double stream mills have won widespread praise and recognition by customers both home and abroad.
