Safety Couplings

Safety Couplings

Description
Safety coupling is also called torque limiting coupling. It is made up of chain coupling and friction gear. This machine is mainly used for overload protection. When the required torque is more than the set value caused by overload or mechanical failure, safety coupling will limit the transmitting torque in the form of sliding. After the overloading or mechanical failure disappear, the machine recovers to normal again.

Application
Safety coupling is widely used in electronic equipment industry, automatic production line and conveyor industry. Torque limiting coupling can be used in driving of identical shafting. It can also be used in parallel shafting with single-row chain.

Features
1. Safety coupling can protect motor and other components.
2. Torque limiting coupling has damping, buffering and compensation performance.
3. Friction coupling is able to realize automatic power-off and alarming.
4. Safety coupling is easy to maintain, assemble and disassemble.

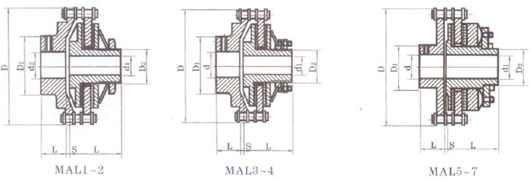

Structure Type

Parameters

Model Sliding Torque Tn/N.m Limited Speed R/min Shaft Hole Dimension Chain Number D D1 D2 S Weight (kg) Rotational Inertia (kg·m²)
Driving End y Driven End J1
min max d1 L1 d2 L2
MAL IQ 6.3 28 1000 10-19 52 14-28 27-44 TG127×2 102 M33×1.5 60 3.7 3.0 0.003
MAL IZ 14 56 1000 16-24 52 18-38 30-60
MAL 2Q 20 80 800 16-25 62 18-38 30-60 TG158× 2 137 M42 ×1.5 80 4.2 8.0 0.014
MAL 2Z 40 140 800 19-30 62 20-45 38-84
MAL 3Q 63 224 500 20-35 75-82 20-48 60-107 TG190× 2 188 M65 ×2 110 3.7 18.9 0.061
MAL 3Z 90 400 500 25-45 75-112 30-65 60-107
MAL 4Q 125 560 400 30-50 100-112 30-70 84-132 TG254× 2 251 M90 ×2 150 5.2 46.5 0.658
MAL 4Z 224 1120 400 35-63 100-142 40-90 84-107
MAL 5Q 400 1400 300 38-63 120-142 40-75 84-132 TG444× 2 345 M100 ×2 130 3.8 76.5 0.921
MAL 5Z 630 2000 300 42-71 120-142 45-85 84-132
MAL 6Q 900 2800 200 40-75 150 45-85 84-132 TG508× 2 470 M150 ×2 145 5.4 155 3.726
MAL 6Z 2000 4000 200 65-100 150-212 65-100 132-167
MAL 7Q 2500 5000 140 70-110 190-212 80-140 132-202 TG508× 2 567 M190 ×2 250 10 335 8.249
MAL 7Z 4500 10000 140 95-130 190-252 110-170 167-242

Note
Q is light duty. Z is heavy duty. The difference only relays on the thickness of disc spring.

We own strict quality control system and perfect testing system in order to ensure the quality of our products. The products like safety couplings have won widespread praise and recognition by customers both home and abroad. Besides, certification of approval and product quality guarantee are also available to customers.
